Embidio Nano Raspberry Pi Kit
Dev Kit

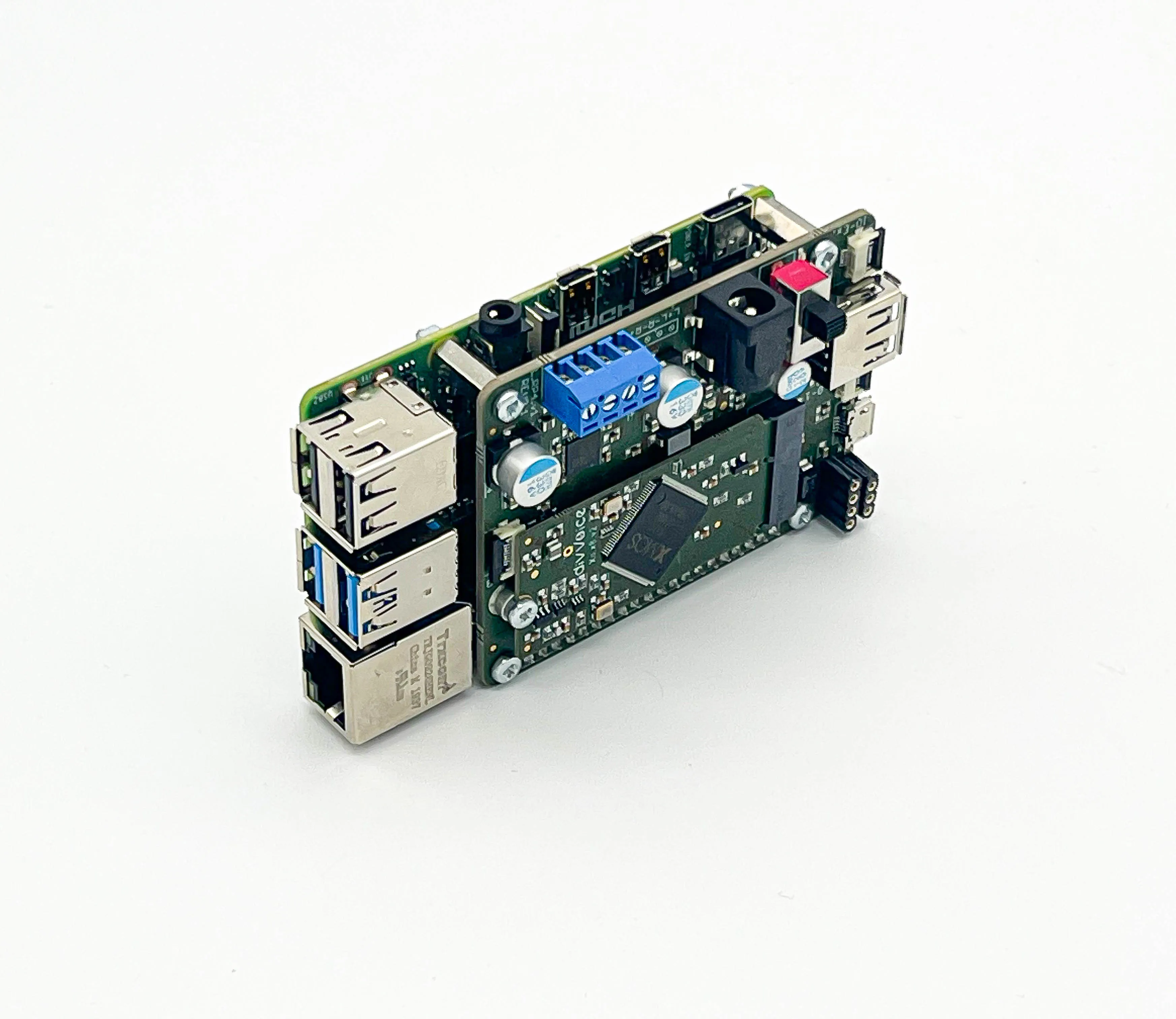

Embidio Nano Raspberry Pi Kit

Add Acoustic Sensing with Up to 8 Microphones to Your Pi

The Embidio Nano Raspberry Pi Kit adds acoustic sensing and voice control to your Raspberry Pi: a HAT with the Nano SoM for onboard signal processing and connections for microphones, speakers, sensors and LEDs.

Key Features

Feature 1 of 4

Multi-Mic Support

Connect up to eight microphones and place them where your application needs them, for directional audio capture.

Specifications

Audio & Acoustics

Microphone Input
Connectors for up to 8 MEMS
Speaker Output
Amplified Stereo Output (e.g., 2 x 4W)
Input Channels
Up to 8
Output Channels
2 (Stereo)
Sampling Rates
16 / 48 kHz
DSP Features
Beamforming, Noise Reduction, Acoustic Echo Cancellation, AGC, EQ

Compute & Connectivity

Core Module
Embidio Nano SoM (XMOS)
Connectivity
Access to RPi GPIO, I2C, SPI; USB (via RPi)
LED Control
Dedicated LED driver/connectors

Physical & Power

Based on
Raspberry Pi HAT Standard
Sensor Ports
Headers for I2C/GPIO sensors

Use Cases

Voice Assistant Prototyping

Rapidly prototype voice assistant systems on Raspberry Pi

DIY Smart Home Hubs

Build custom smart home hubs with voice control

Educational Projects

Learn voice technology through hands-on educational projects

Custom Voice Interfaces

Create custom voice control interfaces for various applications

Acoustic Monitoring

Develop acoustic monitoring and analysis systems

Robotics Voice Interaction

Add voice interaction to robotics projects

Related Products

Embidio Nano

Embidio Nano

Compact Acoustic SoM for Series Production

View Product

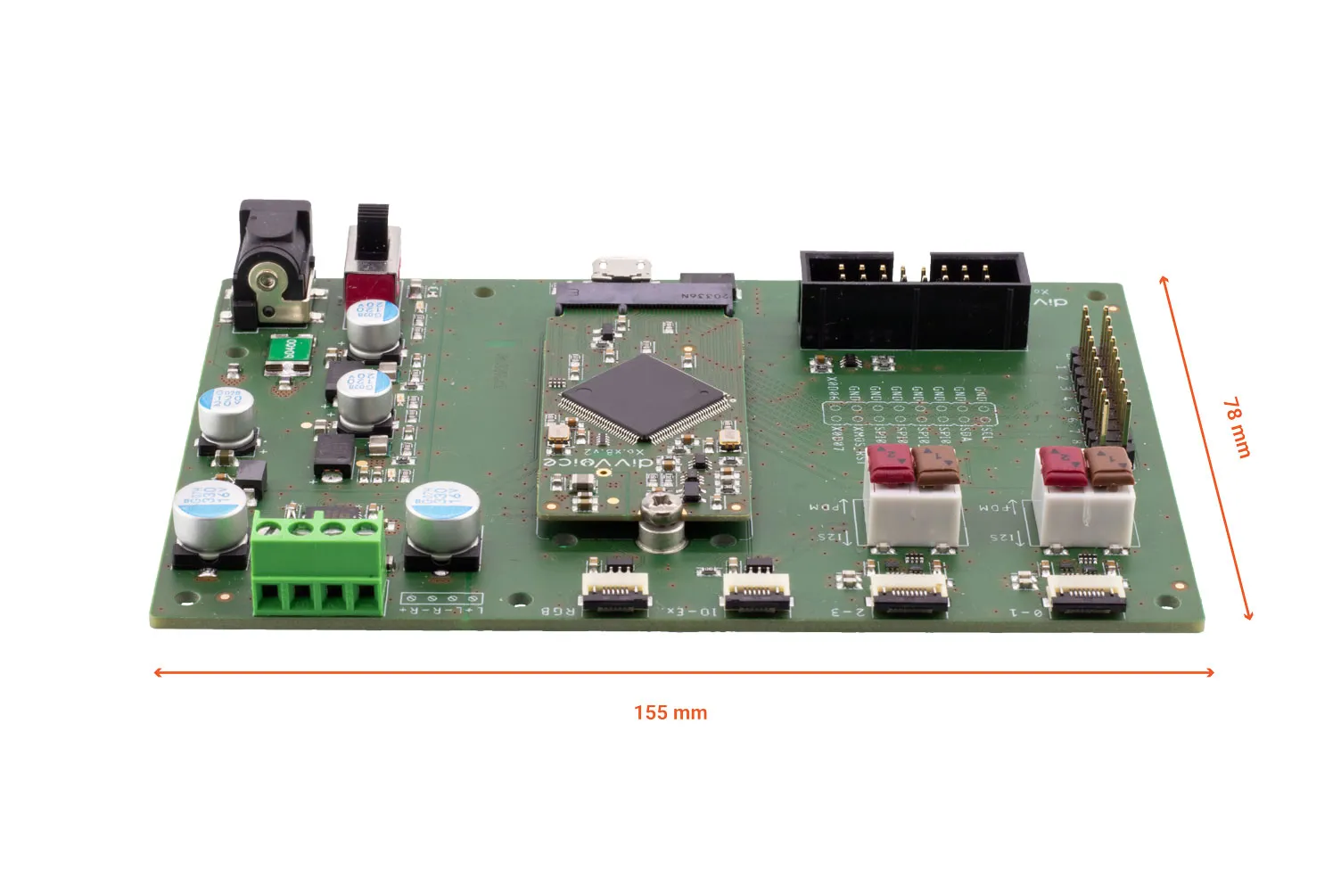

Embidio Nano Development Kit
